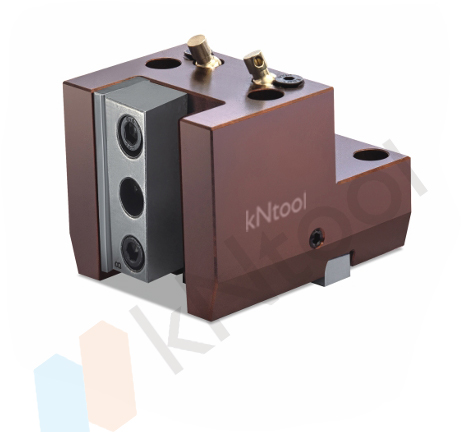

BMT Outer Diameter Fixed Tool Holder
BMT Outer Diameter Fixed Tool Holder

BMT-С402055 Outer Diameter Fixed Tool Holder

Original price was: $79.00.Current price is: $49.00.

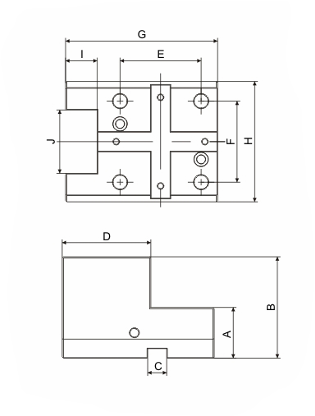

Dimensions:
A (in mm) – 30
B (in mm) – 55
C (in mm) – 12
D (in mm) – 58.5
E (in mm) – 60
F (in mm) – 50
G (in mm) – 97
H (in mm) – 75
I (in mm) – 20
J (in mm) – 40
Weight (kg) – 1.8
Tool Holder Sizes: BMT40/BMT45/BMT55/BMT65/BMT75

Free shipping on orders over $3000!

  • Check Mark Quality Assurance
  • Check Mark Fast shipping
  • Check Mark After-sale service
Categories: , ,
Spread the love

Description

BMT Outer Diameter Fixed Tool Holder

BMT Outer Diameter Fixed Tool Holder

model A B C D E F G H I J N.W.(KG)
C402055 30 55 12 58.5 60 50 97 75 20 40 1.8
C452580 40 80 15 67 58 58 110 85 25 50 3.2
C552580 40 80 15 70 64 64 120 95 25 50 3.8
C652580 40 80 18 70 70 73 130 98 25 50 4.7
C6532100 40 100 18 77.5 70 73 137.5 98 32 64 5.1
C7540100 40 100 25 85 90 90 157 130 40 80 5.3

BMT Outer Diameter Fixed Tool Holder

BMT Fixed External Holders – The Standard of Reliability for Turning

In modern mechanical engineering, the quality of the external surfaces of components is critical.  BMT fixed external holders  provide precision machining of external surfaces on CNC lathes, guaranteeing the highest accuracy and repeatability.

5 Key Benefits

🔹 Absolute rigidity  – monolithic design eliminates vibrations
🔹 Excellent accuracy  – runout less than 0.004 mm
🔹 Versatility  – compatibility with various types of cutters
🔹 Long service life  – wear-resistant materials with a protective coating
🔹 Quick changeover  – convenient tool fastening system

Technical features

✓ Optimal cutting angles for different materials
✓ Reinforced body design
✓ Patented tool locking system
✓ Working temperature up to 400°C without loss of accuracy
✓ Compatible with automatic tool change systems

Application areas

  • Finishing of shafts and axles
  • Turning of critical surfaces
  • Processing of stepped parts
  • Manufacturing of precision components
  • Serial production of machine parts

BMT – professional solutions for your production!

Additional information

Weight 2.5 kg
