Name: BMT-F452560 Fixed End Holder
SKU: 4146
Availability: InStock

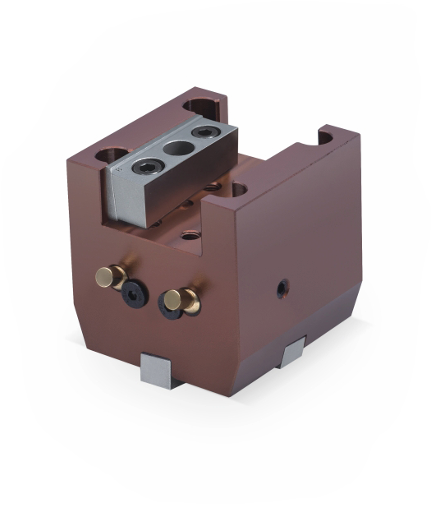

BMT-F452560 Fixed End Holder

Dimensions:
A (in mm) – 25
B (in mm) – 85
C (in mm) – 15
D (in mm) – 50
E (in mm) – 58
F (in mm) – 58
G (in mm) – 86
H (in mm) – 90
Weight (kg) – 3.6

Tool Holder Sizes: BMT40/BMT45/BMT55/BMT65/BMT75

Free shipping on orders over $3000!

Quality Assurance
Fast shipping
After-sale service

Spread the love

Description

model	A	B	C	D	E	F	G	H	N.W.(KG)
F402045	20	65	12	40	60	50	81	75	2.2
F452560	25	85	15	50	58	58	86	90	3.6
F552560	25	85	15	50	64	64	95	95	4.5
F652575	25	100	18	50	70	73	110	98	5.4
F6532100	32	100	18	64	70	73	110	98	5.2
F7540115	40	115	25	80	90	90	126	130	6.1

Fixed End Holders

BMT Fixed End Holders – The Standard of Precision in End Machining

In modern metalworking, the quality of end surfaces plays a key role. BMT fixed end holders ensure impeccable end surface quality on CNC lathes, guaranteeing perfect flatness and surface finish.

5 Key Benefits

Absolute rigidity  – monolithic design eliminates vibrations
Precision accuracy  – runout does not exceed 0.003 mm
Versatility  – compatibility with various types of cutters
Long service life  – wear-resistant materials with a protective coating
Quick setup  – easy adjustment of the tool position

Technical features

✓ Optimal cutting angles for different materials
✓ Reinforced body design
✓ Patented tool clamping system
✓ Operating temperature up to 350°C without loss of accuracy
✓ Compatible with automatic tool change systems

Application areas

Finishing of ends
Trimming of ledges and shoulders
Processing of flanges and covers
Production of critical parts
Serial production of precision components

BMT – professional solutions for your production!

Want perfectly smooth end surfaces?
Get advice from our technologist right now!

Additional information

Weight	5 kg

BMT-F452560 Fixed End Holder
