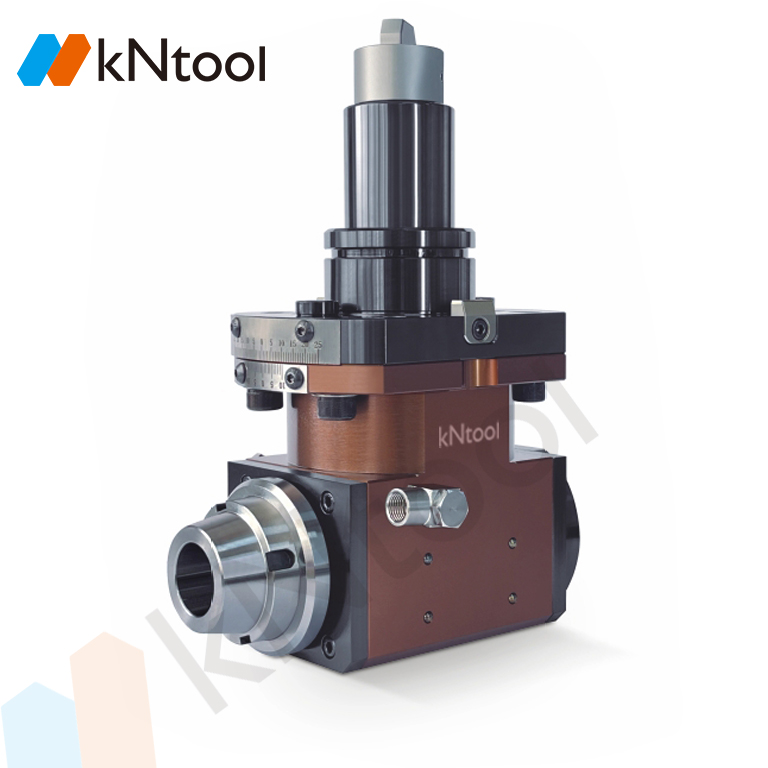

BMT40-CNC Morse Taper Gear Tool Holder

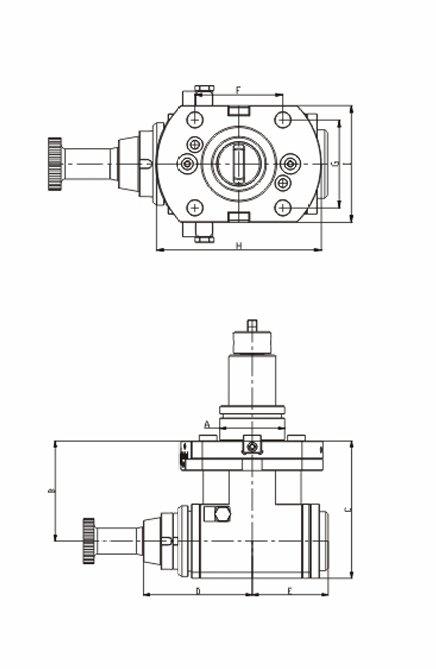

Dimensions:
A (in mm) – 40
B (in mm) – 85
C (in mm) – 116.5
D (in mm) – 67.5
E (in mm) – 64.5
F (in mm) – 60
G (in mm) – 50
H (in mm) – 120
I (in mm) – 73
Rotation speed – 4000 rpm
Adjustable Tilt Angle – ±25°

Free shipping on orders over $3000!

  • Check Mark Quality Assurance
  • Check Mark Fast shipping
  • Check Mark After-sale service
Categories: , ,
Spread the love

Description

bmt Morse taper gear Tool Holder

bmt Morse taper gear Tool Holder

model Specification A B C D E F G H I
BMT40-CNC Morse2 40 85 116.5 67.5 64.5 60 50 120 73
BMT45-CNC 45 58 58 75
BMT55-CNC 55 64 64 85
BMT55-CNC Morse3 92.3

BMT Morse Taper Tool Holders

BMT Morse Taper Tool Holders – A Reliable Solution for Professional Turning

In the world of modern metalworking, it is important to have equipment that combines precision, reliability and versatility.  BMT Morse Taper Tool Holders  are designed specifically for CNC lathes, providing ideal tool retention and machining stability.

Advantages of BMT Morse Taper Holders

✔ Perfect alignment  – positioning accuracy up to 0.005 mm
✔ Reliable fixation  – Morse taper system guarantees no backlash
✔ Versatility  – compatible with a wide range of tools
✔ Durability  – made of high-strength steel with wear-resistant coating
✔ Quick installation  – easy installation and tool change

Technical features

✓ Standard Morse taper sizes (MT1-MT6)
✓ Heat treated surfaces for increased wear resistance
✓ Optimum balance for high RPM operation
✓ Compatible with most CNC lathes

Application areas

  • External and internal turning
  • Boring operations
  • Thread cutting
  • Processing of shaped surfaces
  • Serial production of parts

BMT – when every detail matters!
