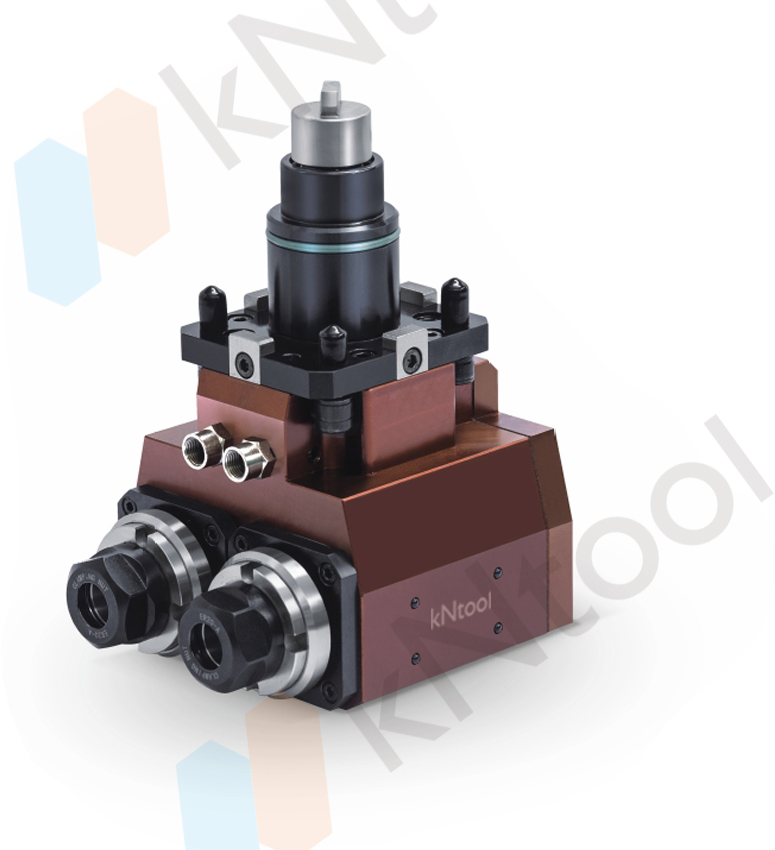

BMT Double Head Radial Drive tool holder
BMT Double Head Radial Drive tool holder

BMT55-90-ST Double Head Radial Drive tool holder

Original price was: $920.00.Current price is: $770.00.

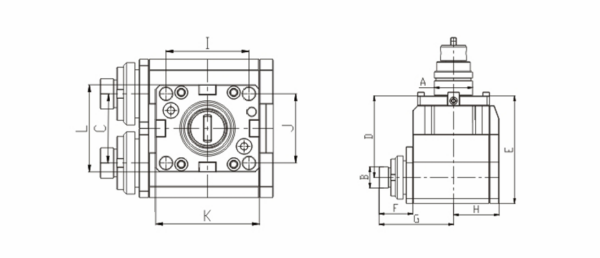

Dimensions:
A (in mm) – 55
B (collet) – ER20
C (in mm) – 56
D (in mm) – 85
E (in mm) – 115
F (in mm) – 35.6
G (in mm) – 80.7
H (in mm) – 58
I (in mm) – 64
J (in mm) – 64
K (in mm) – 90
L (in mm) – 85
Weight (kg) – 12.4
Rotation speed – 6000 rpm
Collet Mount – External
Speed ratio – 1:1

Free shipping on orders over $3000!

  • Check Mark Quality Assurance
  • Check Mark Fast shipping
  • Check Mark After-sale service
Categories: , , ,
Spread the love

Description

BMT Double Head Radial Drive tool holder BMT Double Head Radial Drive tool holder

model Locking method A B C D E F G H I J K L N.W.(KG)
BMT40-90-ST External lock 40 ER16 50 85 112 35.2 77.6 47.5 60 50 75 63 11
BMT45-90-ST 45 ER20 56 115 35.7 80.7 58 58 58 85 75 12
BMT55-90-ST 55 35.6 64 64 90 85 12.4
BMT65-90-ST 65 100 130 35.7 70 73 90 94 13.5

BMT Double Head Radial Drive Blocks

BMT Double Head Radial Drive Units – Double Power for Your Production!

Transform your CNC lathe into a high-performance machine with  BMT dual-head radial drive units !

Why do manufacturers choose BMT?

✪  Double productivity  – simultaneous processing with two tools reduces cycle time by 30-50%
✪  Perfect synchronization  – precision control system ensures coordinated operation of both heads
✪  Maximum rigidity  – reinforced construction ensures stability even under impact loads
✪  Versatility of use  – ideal for complex operations: knurling, milling, drilling

Technological advantages:

▸ Hydraulic or mechanical tool locking
▸ Rotary heads with tilt angle up to 90°
▸ Compatible with all modern CNC
▸ Service life 3 times higher than analogues

BMT – when it’s not just speed that matters, but intelligent performance!

💡 Want to double the efficiency of your equipment?
📞 Leave a request  – and our engineers will select the optimal solution for your tasks!

Additional information

Weight 14 kg
