BMT Gear Driven Tool Holder
BMT Gear Driven Tool Holder

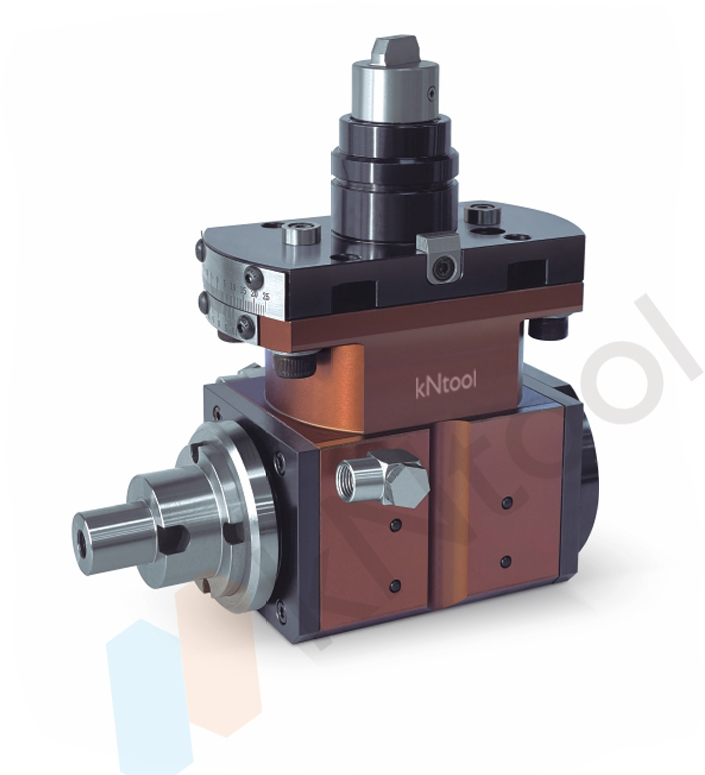

BMT55-CNC Gear Driven Tool Holder

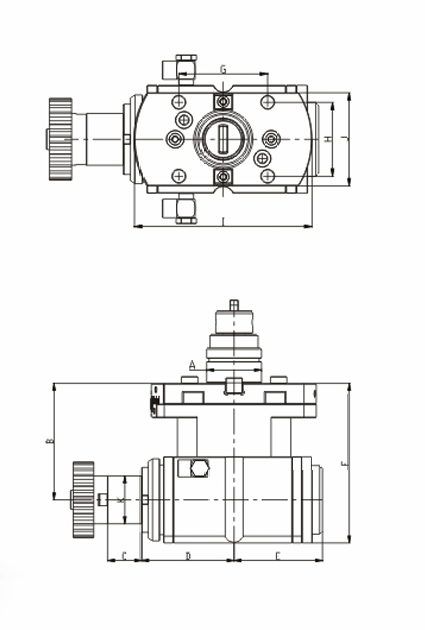

Dimensions:
A (in mm) – 55
B (in mm) – 85
C (in mm) – 25
D (in mm) – 67.5
E (in mm) – 64.5
F (in mm) – 116.5
G (in mm) – 64
H (in mm) – 64
I (in mm) – 120
J (in mm) – 85
K (in mm) – 19.05
Model: D19
Rotation speed – 4000 rpm
Adjustable Tilt Angle – ±25°

Free shipping on orders over $3000!

  • Check Mark Quality Assurance
  • Check Mark Fast shipping
  • Check Mark After-sale service
Categories: , ,
Spread the love

Description

BMT Gear Driven Tool Holder

BMT Gear Driven Tool Holder

Order Number model A B D E F G H 1 J K
BMT40-CNC D19 40 85 25 67.5 64.5 116.5 60 50 120 63 19.05
BMT45-CNC 45 58 58 75
BMT55-CNC 55 64 64 85

Gear Driven Tool Holders

BMT holders with gear drive – perfect precision!

Do your CNC lathes require reliable and high-precision tool clamping?  BMT gear-driven toolholders  are the innovative solution for maximum productivity and trouble-free operation!

Why choose BMT?

Instant locking  – gear drive ensures fast and rigid tool change without backlash.
High repeatability  – positioning accuracy up to microns for flawless processing.
Increased service life  – wear-resistant materials and thoughtful design reduce maintenance costs.
Versatility  – compatible with most modern CNC lathes.

BMT – for those who do not seek compromises!

Choose BMT gear driven toolholders   and get  consistent quality, speed and reliability  in every machining cycle.

Increase your production efficiency today!
Contact us  – and equip your machine with the best!

Additional information

Weight 21 kg
