Compatible zero point quick change plate (aluminum) KT9652-155

Original price was: $400.00.Current price is: $235.00.

Size: 155*155*30mm
Material: Hardened aluminum + steel ring
Weight: 2.2kg
Bolt: 4-M10
Locking force: 18KN
Machine tool two-way fixed seat
Suitable for 3/4/5 axis machine tools
Machine tool quick-change fixture
Repeat positioning accuracy 0.005mm
Source manufacturer

Free shipping on orders over $3000!

  • Check Mark Quality Assurance
  • Check Mark Fast shipping
  • Check Mark After-sale service
Spread the love

Description

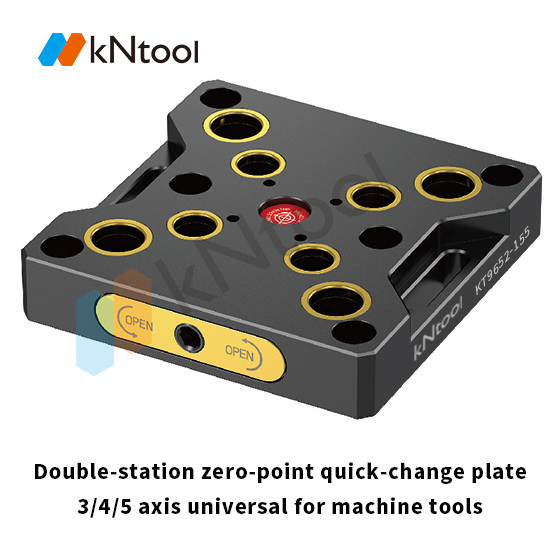

Compatible zero point quick change plate (aluminum) KT9652-155

Compatible zero point quick change plate (aluminum) KT9652-155



Compatible zero point quick change plate (aluminum) KT9652-155

Specifications KT9652 KT52-108
Parallelism 0.02mm 0.02mm
Maximum opening 100mm 100mm
Verticality 0.02mm 0.02mm
Clamping force 18KN 17KN
Product hardness HRC50-55 HRC50-55
Product material Aluminum Aluminum
Product size 155*155*30mm 108*108*25mm
Power type Manual Manual
Tightening bolt diameter M8 M8
Product type Zero point quick change plate Zero point quick change plate
Scope of application Machining center CNC machine tool

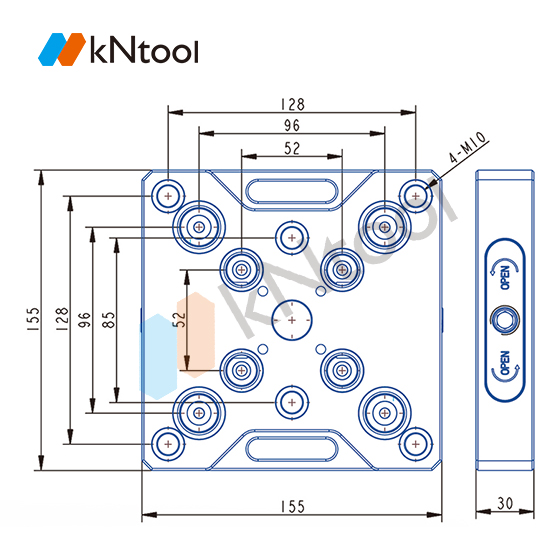

 96mm/52mm hole distance zero point quick change plate

*Fast operation.  *Flexible switching.  *Precise positioning.

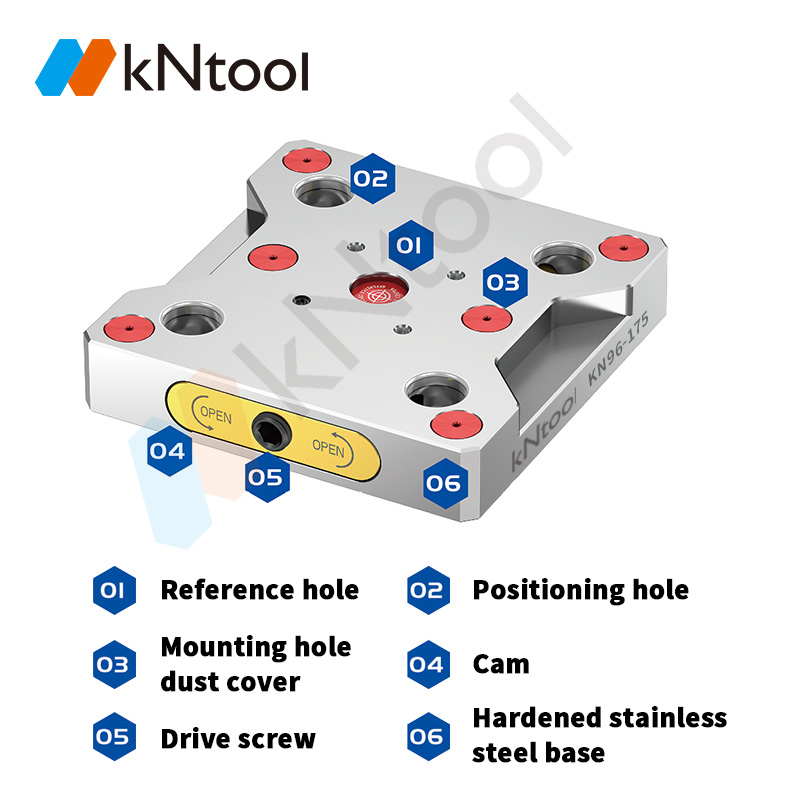

Use zero-point quick-change system to increase CNC machine tool clamping stations, improve processing capabilities and reduce downtime96 毫米_52 毫米_孔距_零点_快速转弯板 Zero_point_quick_change_plate_structure_description



Zero point quick change modular installation

The three-axis, four-axis, and five-axis high-precision zero-point fixtures are compatible with quick-release L-bridge plates, self-centering vises, ER collet holders, three-jaw chuck dovetail clamps, and various self-made fixtures, etc., to achieve quick change and quick installation, reduce the pre-machine preparation time, and ensure extremely high precision for repeated clamping of products and changing of processes. It is an upgraded version of the traditional processing technology, and significantly improves product efficiency and quality. Zero_point_quick_change_modular_installation Zero_point_quick_change_modular_installation_2





Additional information

Weight 4 kg
Dimensions 155 × 155 × 30 cm
