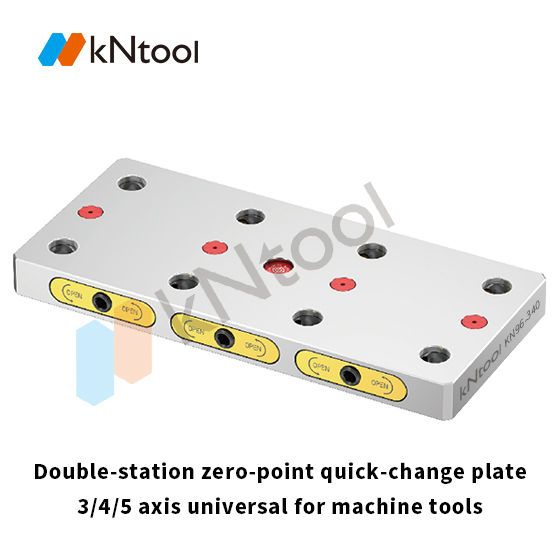

KN/KT96 Series Multi-station Zero-point Quick-change Plate KN96-340

Description

KN/KT96 Series Multi-station Zero-point Quick-change Plate KN96-340

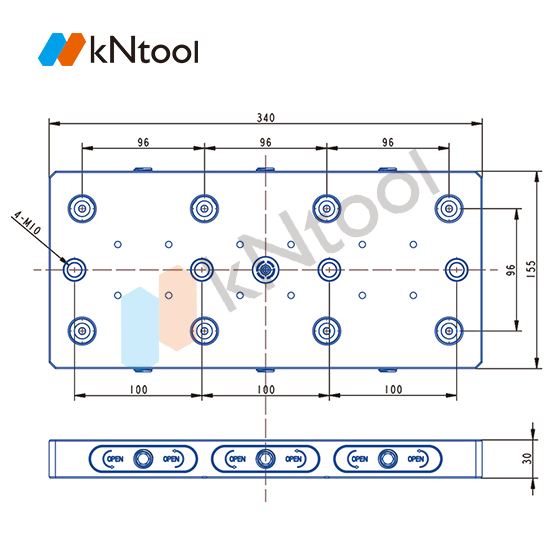

Specifications: 96 hole spacing – manual multi-station clamp KN95-340
Clamping force: 22KN
Installation hole diameter: 10mm
Handle opening angle: 180°
Product plate thickness: 30mm
Product length: 340mm
Installation hole spacing: 96mm
Product features: multi-station quick-change clamp
Product weight: 4.0KG
Product material: stainless steel
Matching screw: M10
Scope of application: workpiece positioning and clamping
Handle opening angle: 100°
Working stroke: 120mm
Product type: multi-station clamp

 96mm/52mm hole distance zero point quick change plate

*Fast operation.  *Flexible switching.  *Precise positioning.

Use zero-point quick-change system to increase CNC machine tool clamping stations, improve processing capabilities and reduce downtime

Zero point quick change modular installation

The three-axis, four-axis, and five-axis high-precision zero-point fixtures are compatible with quick-release L-bridge plates, self-centering vises, ER collet holders, three-jaw chuck dovetail clamps, and various self-made fixtures, etc., to achieve quick change and quick installation, reduce the pre-machine preparation time, and ensure extremely high precision for repeated clamping of products and changing of processes. It is an upgraded version of the traditional processing technology, and significantly improves product efficiency and quality.
