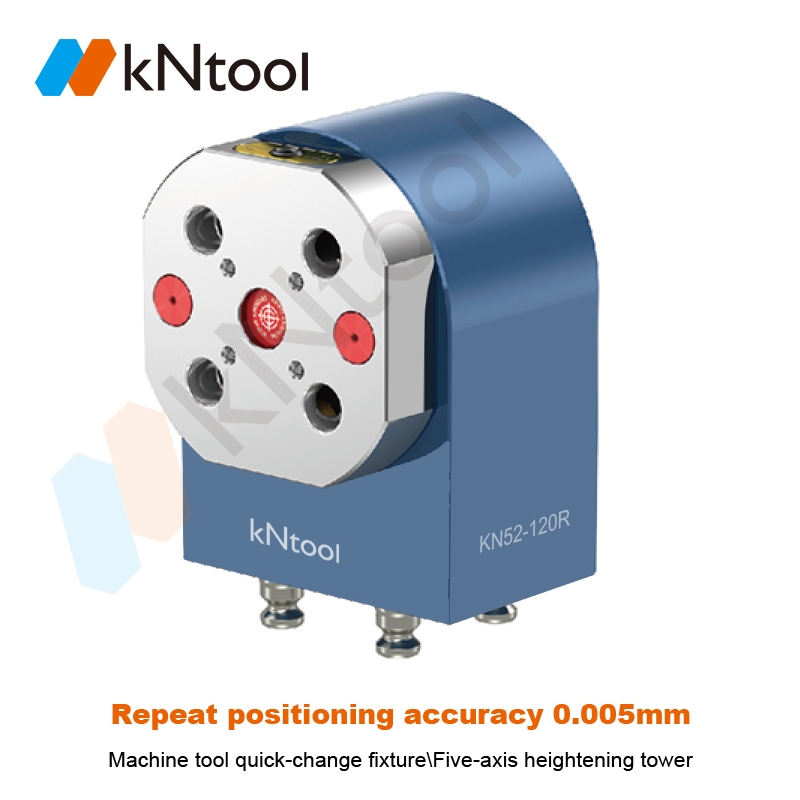

KN52 series 0-90° rotatable zero point seat KN52-120R

Original price was: $899.00.Current price is: $480.00.

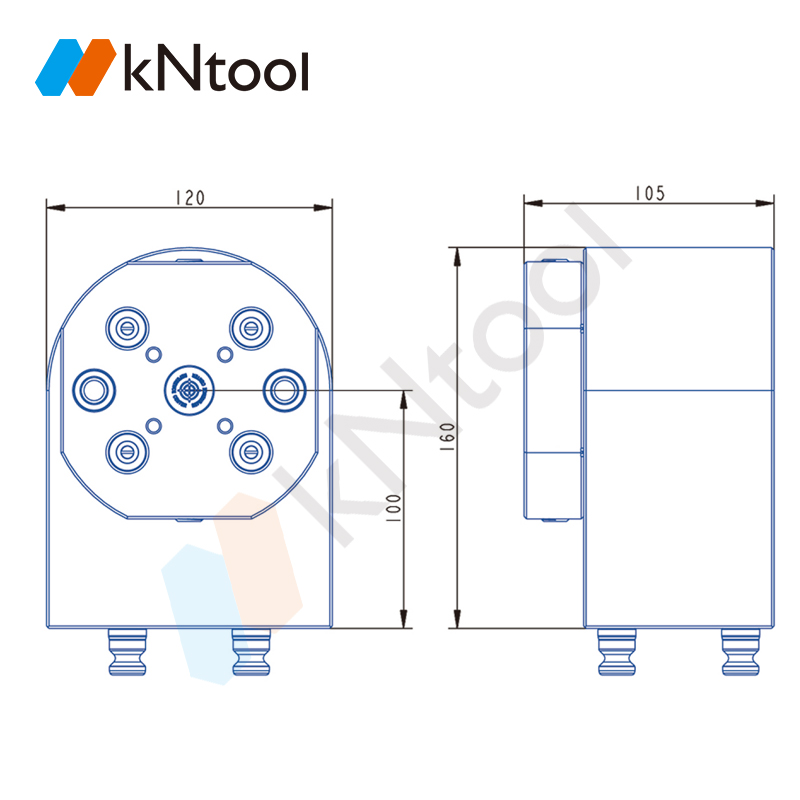

Size: 160*120*105mm
Material: aluminum + hardened stainless steel
Weight: 7.2kg
Locking force: 18KN
Locking method: 52 pull nails
Parallelism: 0.01mm
Maximum opening: 120mm
Verticality: 0.02mm
Clamping force: 60KN
Product hardness: HRC55-60
Machine tool two-way fixed seat
Suitable for 3/4/5 axis machine tools
Machine tool quick-change fixture

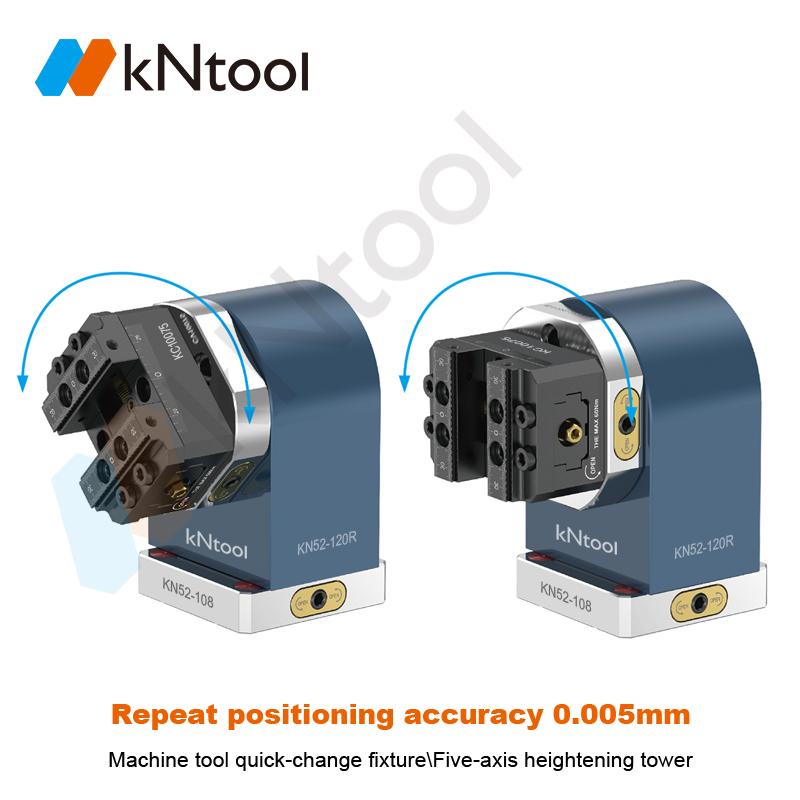

Repeat positioning accuracy 0.005mm
Source manufacturer

Free shipping on orders over $3000!

  • Check Mark Quality Assurance
  • Check Mark Fast shipping
  • Check Mark After-sale service
Spread the love

Description

KN52 series 0-90° rotatable zero point seat KN52-120R KN52 series 0-90° rotatable zero point seat KN52-120R KN52 series 0-90° rotatable zero point seat KN52-120RKN52 series 0-90° rotatable zero point seat KN52-120R
Specifications: 52 hole pitch rotating zero point seat KN52-120R
Size: 160*120*105mm
Material: aluminum + hardened stainless steel
Weight: 7.2kg
Locking force: 18KN
Locking method: 52 pull nails
Parallelism: 0.01mm
Maximum opening: 120mm
Verticality: 0.02mm
Clamping force: 60KN
Product hardness: HRC55-60
Product material: stainless steel
Power type: manual
Scope of application: machining center

 96mm/52mm hole distance zero point quick change plate

*Fast operation.  *Flexible switching.  *Precise positioning.

Use zero-point quick-change system to increase CNC machine tool clamping stations, improve processing capabilities and reduce downtime96 毫米_52 毫米_孔距_零点_快速转弯板



Zero point quick change modular installation

The three-axis, four-axis, and five-axis high-precision zero-point fixtures are compatible with quick-release L-bridge plates, self-centering vises, ER collet holders, three-jaw chuck dovetail clamps, and various self-made fixtures, etc., to achieve quick change and quick installation, reduce the pre-machine preparation time, and ensure extremely high precision for repeated clamping of products and changing of processes. It is an upgraded version of the traditional processing technology, and significantly improves product efficiency and quality. Zero_point_quick_change_modular_installation Zero_point_quick_change_modular_installation_2





Additional information

Weight 9 kg
Dimensions 160 × 120 × 105 cm
