Name: KN52 series zero point fixing seat with heightened tower KN52-215
SKU: 3466
Availability: InStock

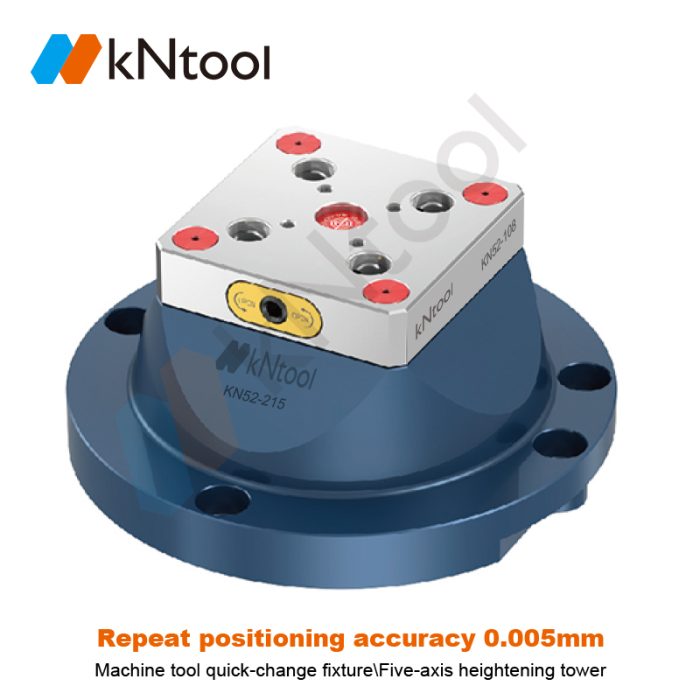

KN52 series zero point fixing seat with heightened tower KN52-215

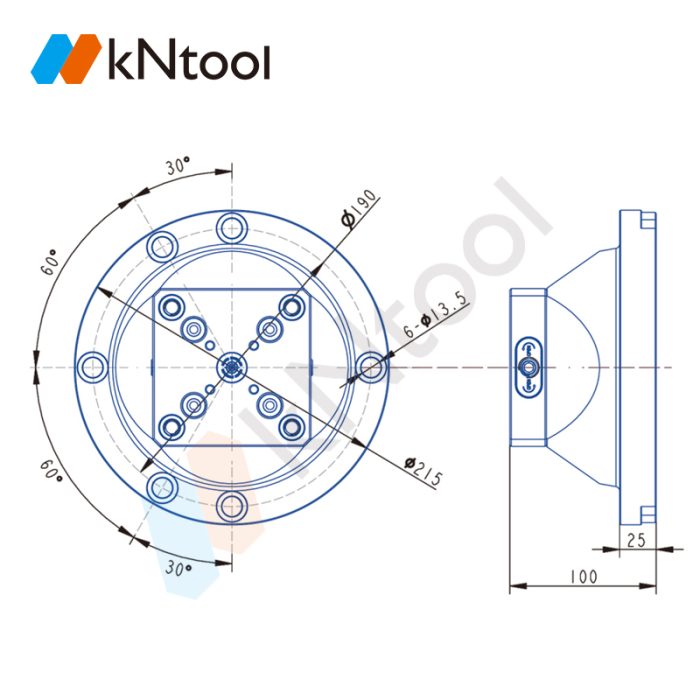

Size: D215*100mm
Material: aluminum + hardened stainless steel
Weight: 6.8kg
Bolt: 6-M12
Locking force: 18KN
Machine tool quick-change fixture
Repeat positioning accuracy 0.005mm
Source manufacturer

Free shipping on orders over $3000!

Quality Assurance
Fast shipping
After-sale service

Spread the love

Description

KN52 series zero point fixing seat with heightened tower KN52-215

Specifications: 52 hole spacing – manual zero-point five-axis high tower KN52-215
Clamping force: 18KN
Product length: 215mm
Product material: stainless steel
Handle opening angle: 100°
Installation hole diameter: 8mm
Installation hole spacing: 52mm
Matching screw: M8
Working stroke: 120mm
Handle opening angle: 180°
Product features: Zero point fixed seat
Scope of application: workpiece positioning and clamping
Product type: modular fixture system
Product plate thickness: 50mm
Product weight: 6.8KG

Specification	52 hole spacing-manual zero five-axis high tower KN52-215	96 hole spacing-manual zero five-axis high tower KN96-276
Clamping force	18KN	22KN
Product Length	215mm	276mm
Product Material	Stainless steel	Stainless steel
Opening angle of the handle	100°	100°
Mounting hole diameter	8mm	10mm
Installation hole distance	52mm	96mm
Matching screws	M8	M10
Work schedule	120mm	120mm
Handle opening angle	180°	180°
Features	Zero point fixing seat	Zero point fixing seat
Scope of application	Workpiece positioning and clamping	Workpiece positioning and clamping
Product Type	Modular fixture system	Modular fixture system
Product thickness	50mm	120mm
Product Weight	6.8KG	15KG

96mm/52mm hole distance zero point quick change plate

*Fast operation. *Flexible switching. *Precise positioning.

Use zero-point quick-change system to increase CNC machine tool clamping stations, improve processing capabilities and reduce downtime

Zero point quick change modular installation

The three-axis, four-axis, and five-axis high-precision zero-point fixtures are compatible with quick-release L-bridge plates, self-centering vises, ER collet holders, three-jaw chuck dovetail clamps, and various self-made fixtures, etc., to achieve quick change and quick installation, reduce the pre-machine preparation time, and ensure extremely high precision for repeated clamping of products and changing of processes. It is an upgraded version of the traditional processing technology, and significantly improves product efficiency and quality.
