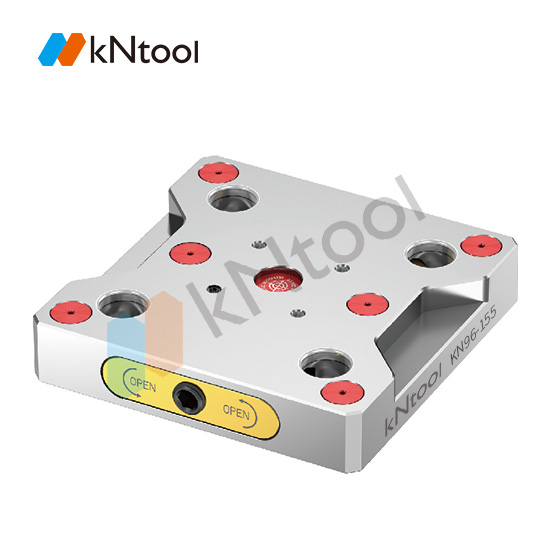

KN96 Series Manual Square Zero-Point Quick-Change Plate KN96-155
Original price was: $550.00.$350.00Current price is: $350.00.
Size: 155*155*30mm
Material: Hardened stainless steel
Weight: 4.8kg
Bolt: 6-M10
Locking force: 22KN
Machine tool two-way fixed seat
Suitable for 3/4/5 axis machine tools
Machine tool quick-change fixture
Repeat positioning accuracy 0.005mm
Source manufacturer
Free shipping on orders over $3000!
- Quality Assurance
- Fast shipping
- After-sale service
Description
KN96 Series Manual Square Zero-Point Quick-Change Plate KN96-155

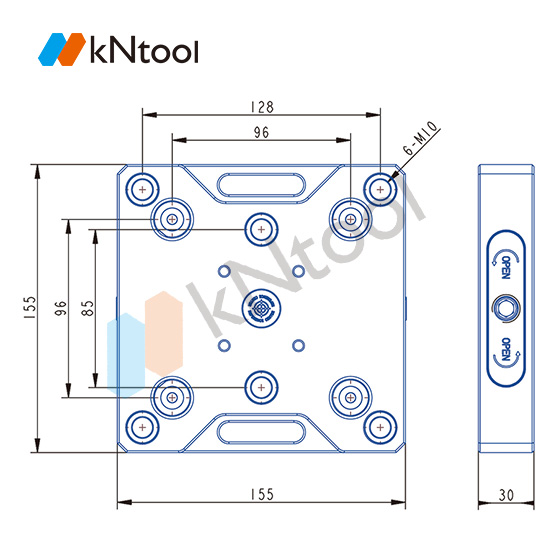

Specifications: 96 hole spacing – manual clamp KN96-155
Clamping force: 22KN
Mounting hole diameter: 10mm
Product features: quick-change clamp
Product weight: 4.8KG
Product length: 155mm
Mounting hole spacing: 96mm
Application scope: workpiece positioning and clamping
Product material: stainless steel
Matching screw: M10
Product type: machining center clamp
Handle opening angle: 100°
Handle opening angle: 180°
Product plate thickness: 30mm
96mm/52mm hole distance zero point quick change plate
*Fast operation. *Flexible switching. *Precise positioning.
Use zero-point quick-change system to increase CNC machine tool clamping stations, improve processing capabilities and reduce downtime
Zero point quick change modular installation
The three-axis, four-axis, and five-axis high-precision zero-point fixtures are compatible with quick-release L-bridge plates, self-centering vises, ER collet holders, three-jaw chuck dovetail clamps, and various self-made fixtures, etc., to achieve quick change and quick installation, reduce the pre-machine preparation time, and ensure extremely high precision for repeated clamping of products and changing of processes. It is an upgraded version of the traditional processing technology, and significantly improves product efficiency and quality.
Additional information
Weight | 7 kg |
---|---|
Dimensions | 155 × 155 × 30 cm |
