KNXR-07001 V-Shape Wire Cut EDM Manual Chuck Holder for System 3N

Description

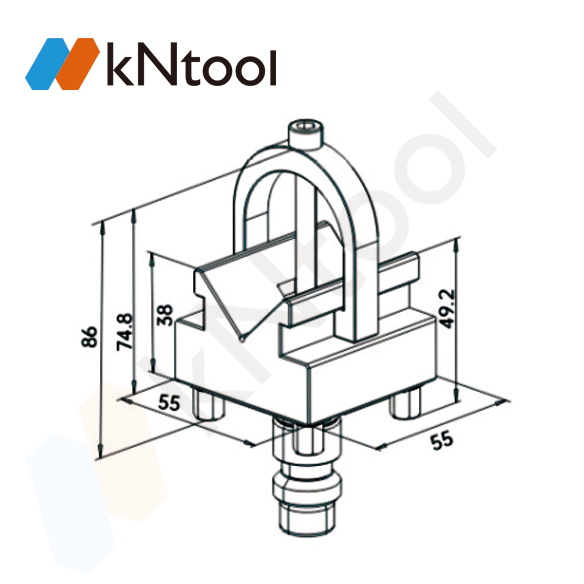

KNXR-07001 V-Shape Wire Cut EDM Manual Chuck Holder
Size:55x55x86.5mm
Material:Stainless Steel420 50-53HRC
Toleranco:Concentricity Tolerance:0.005mm
Application:Suitable For EDM WEDM

—

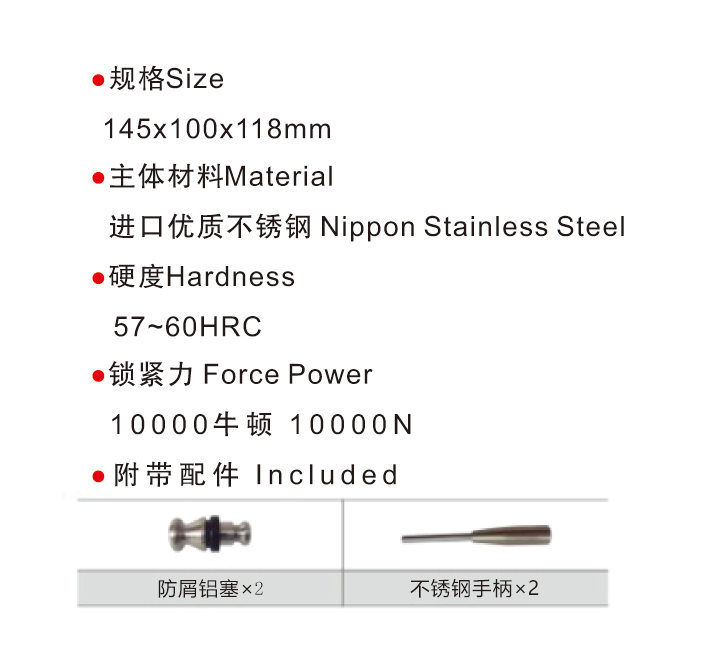

KNXR-06006 Horizontal & Vertica Manual Chuck D100
Size:145x100x118mm
Material：Nippon Stainless Steel
Hardness:57~60HRC
Force Power:10000N
Included:
Anti-chip aluminum plug *1
Stainless steel handle *1

—

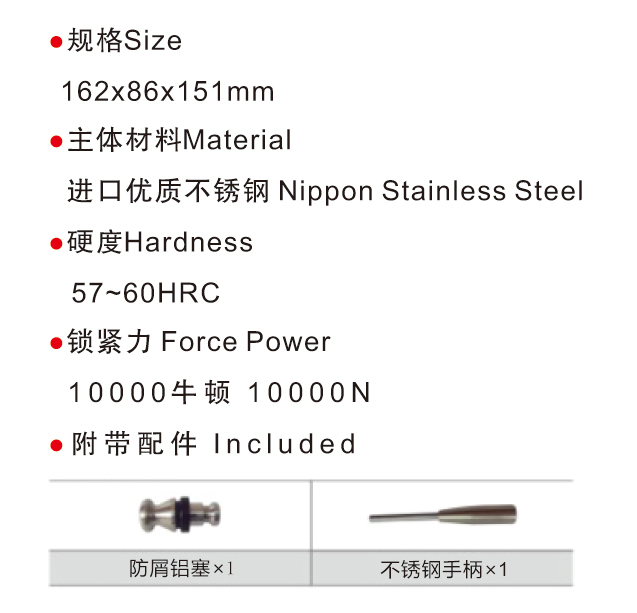

KNXR-06005 Vertical Manual Chuck D100
Size:162x86x151mm
Material：Nippon Stainless Steel
Hardness:57~60HRC
Force Power:10000N
Included:
Anti-chip aluminum plug *1
Stainless steel handle *1

—

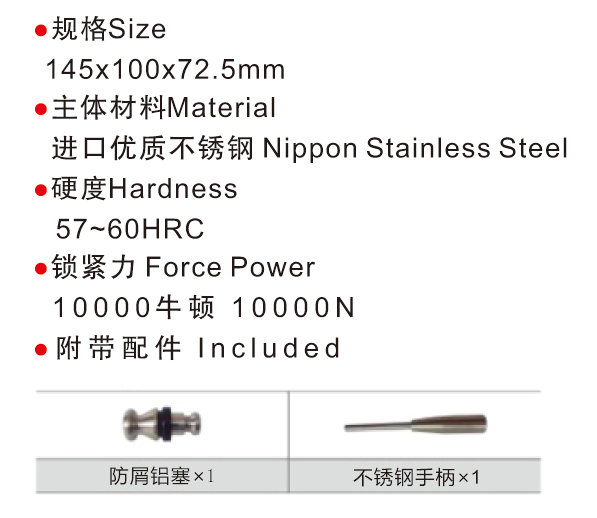

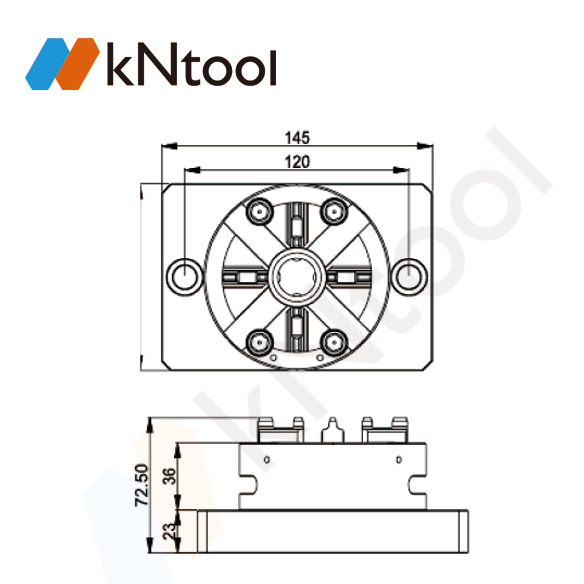

KNXR-06003 Manual Chuck D100 With CNC Base
Size：145x100x72.5mm
Material：Nippon Stainless Steel
Hardness:57~60HRC
Force Power:10000N
Included:
Anti-chip aluminum plug *1
Stainless steel handle *1

–

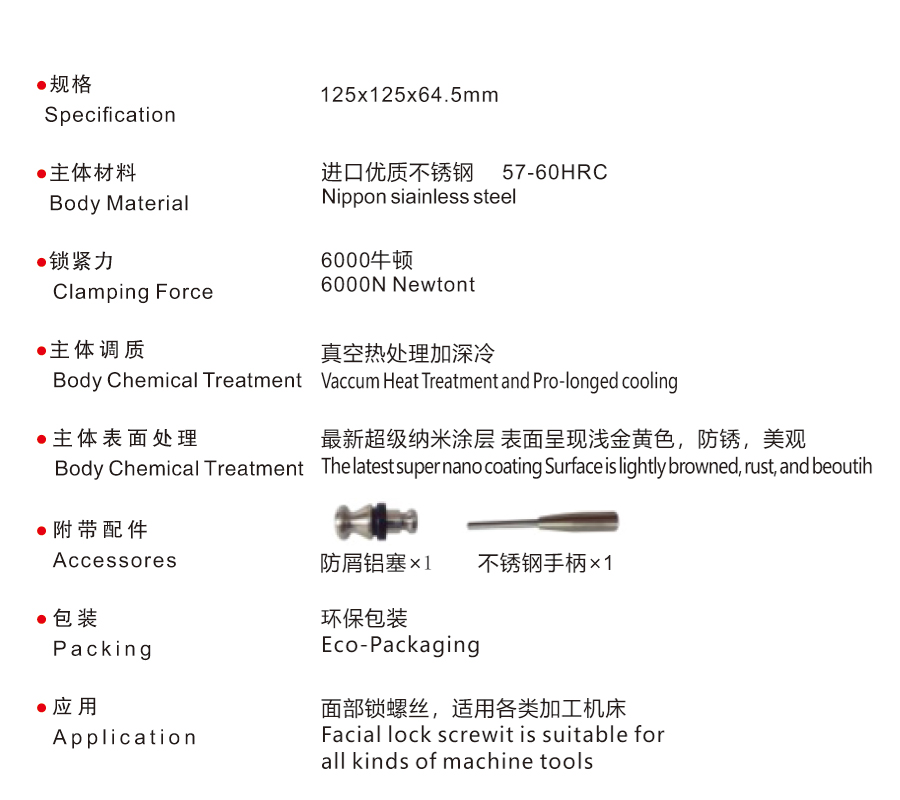

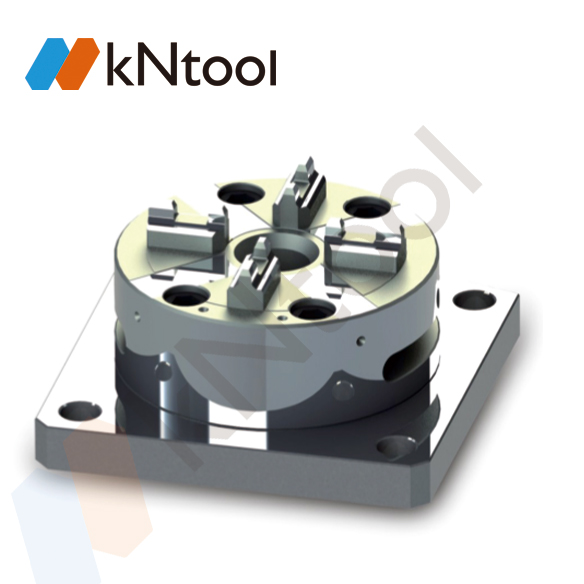

KNXR-06002 Manual Chuck D100 With Standard Base
Specification：125x125x64.5mm
Body Material：Nippon siainless steel
Clamping Force：6000N Newtont
Body Chemical Treatment:Vaccum Heat Treatment and Pro-longed cooling
The latestsupernano coating Surface is lightly browned, rust, and beoutih
Accessores:Anti-chip aluminum plug *1, stainless steel handle *1
Packing:Eco-Packaging
Application:Faciallock screwit is suitable forall kinds ofmachine tools

—

KNXR-05010 Horizontal&VerticalPneumatic Chuck
Size:145x100x118mm
Material:Nippon Stainless Steel
Hardness:57~60HRC
Air Pressure Require:6Bar,With Air Cleaning Function
Force Power:10000N
Equipped with pneumatic switch
Anti-chip aluminum plug

—

KNXR-05009 D100 Vertical Pneumatic Chuck
Size:162×99.5x151mm
Material:Nippon Stainless Steel
Hardness:57~60HRC
Air Pressure Require:6Bar,With Air Cleaning Function
Force Power:10000N

—

KNXR-05003 Pneumatic Chuck D100(With Functiomal Base)
Size:102x102x72.5mm
Material:Nippon Stainless Steel57~60HRC
Air Pressure Require:6Bar,With Air Cleaning Function
Force Power:10000N

—

KNXR-05001 CNC Pneumatic Chuck D100
Size：145x100x72.5mm
Material：Nippon Stainless Steel57~60HRC
Air Pressure Require：6Bar,With Air Cleaning Function
Force Power：10000N
